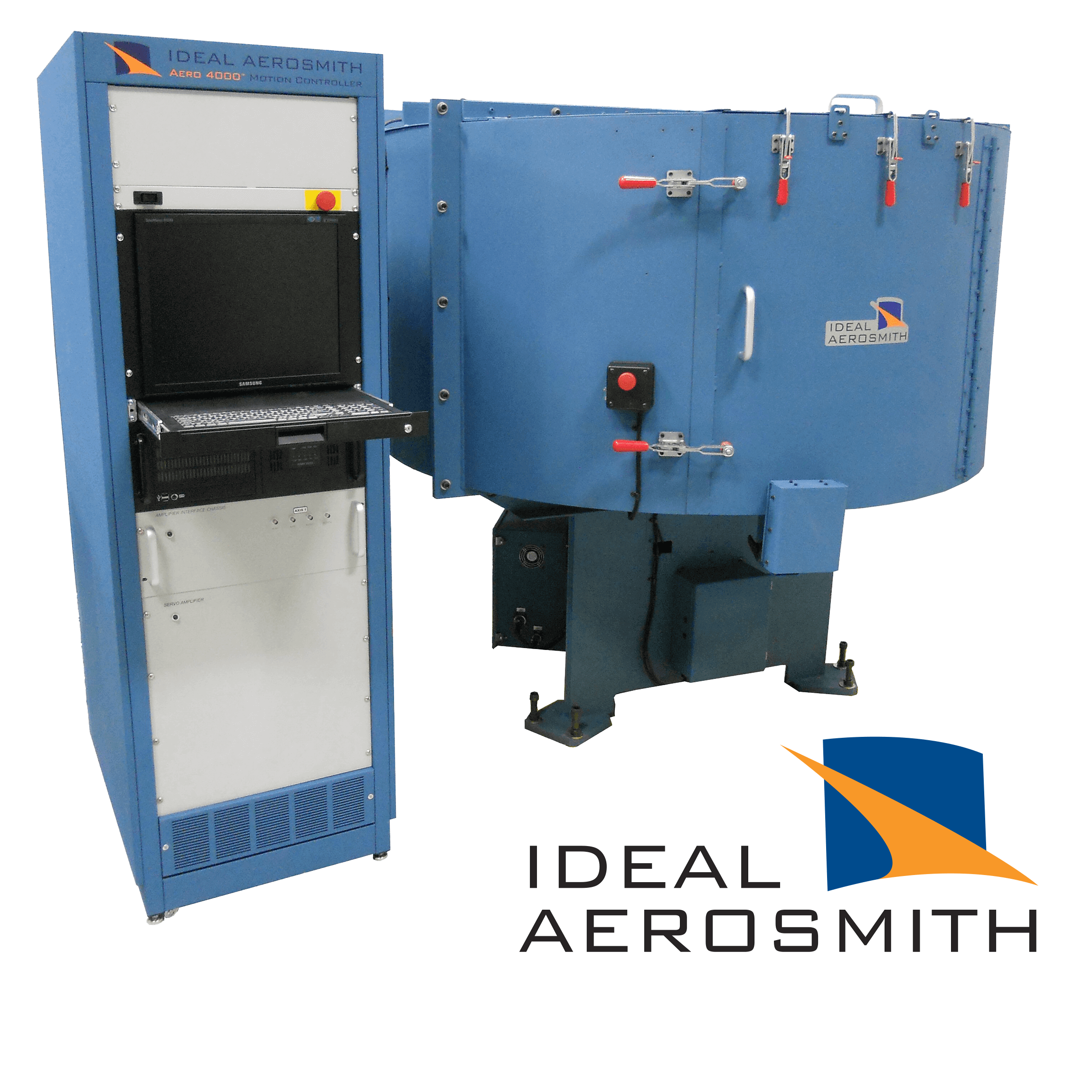

Ideal Aerosmith Model 1221 Centrifuge
1221 Data Sheet

The Ideal Aerosmith 1221 is designed to apply a large centrifugal force to a payload. While this can also be accomplished with a single-axis motion simulation table system, a centrifuge is typically required for applications with larger payloads, and/or higher g requirements. The 1221 tests from 0 to 250 g’s at a 25-inch radius. Payload capacity is an 18 inch cube (457 mm) at 200 lbs. (91 Kg) per arm.

Ideal Aerosmith centrifuge solutions are used in many industries, including aerospace, automotive, geo-technical and the military. Often this is in the qualification testing of accelerometers, inertial packages or safe-arming devices (fuzes).

Features of the 1221

  • g Range: 0 to 250 g‘s at a 25-inch radius
  • Maximum g-lbs: 20000 g-lbs
  • Payload Capacity: 18 inch cube, (457 mm); 200 lbs. (91 Kg) per arm
  • Rate Range: 0-600 RPM
  • Slip Rings: 108 lines at 3A per line
  • Drive System: 15 H.P. D.C. motor
  • Control: AERO 4000 Controller with centrifuge-specific GUI
  • Testing radius: UUT location is adjustable within mounting platform, 15-334 inch radius (381-838 mm)
  • Stability: ≤0.1% of operating rate above 60 rpm. Zero drift.
  • Speed Indication Accuracy: 0.01% ± 0.02 RPM (measured over 1 revolution)
  • Vibration Isolation: Less than 0.1 g from 0.5 – 100 Hz Bi-Axial measured at UUT Mounting Platform
  • Power: 230VAC, 3 phase, 60 Hz, 65 A (70 A service)
  • Mounting Platform: 18 inches x 18 inches horizontal platforms located at each end of the rotating arm
  • Dimensions:
    Centrifuge: 73 in. diameter x 72 in. high (1854 x 1829 mm)
    Console: 24 in. wide x 30 in. deep x 70 in. high (610 x 762 x 1778 mm)
    Drive isolation Transformer: 26 in. wide x 22 in. deep x 34.5 in. high (660 x 559 x 876 mm)
  • Approximate Weight: 3500 lbs (1588 Kg)
  • Other Standard Features: Unbalance Sensor provides automatic machine shut down in event of unbalanced loads; Electrical door interlocks prevent enclosure from being opened while machine is in motion; Dynamic Braking System



Options of the 1221

  • Custom slip ring configuration
  • Camera viewing system
  • Fluid transfer joint
  • Coaxial rotary joint
  • Positionable platforms
